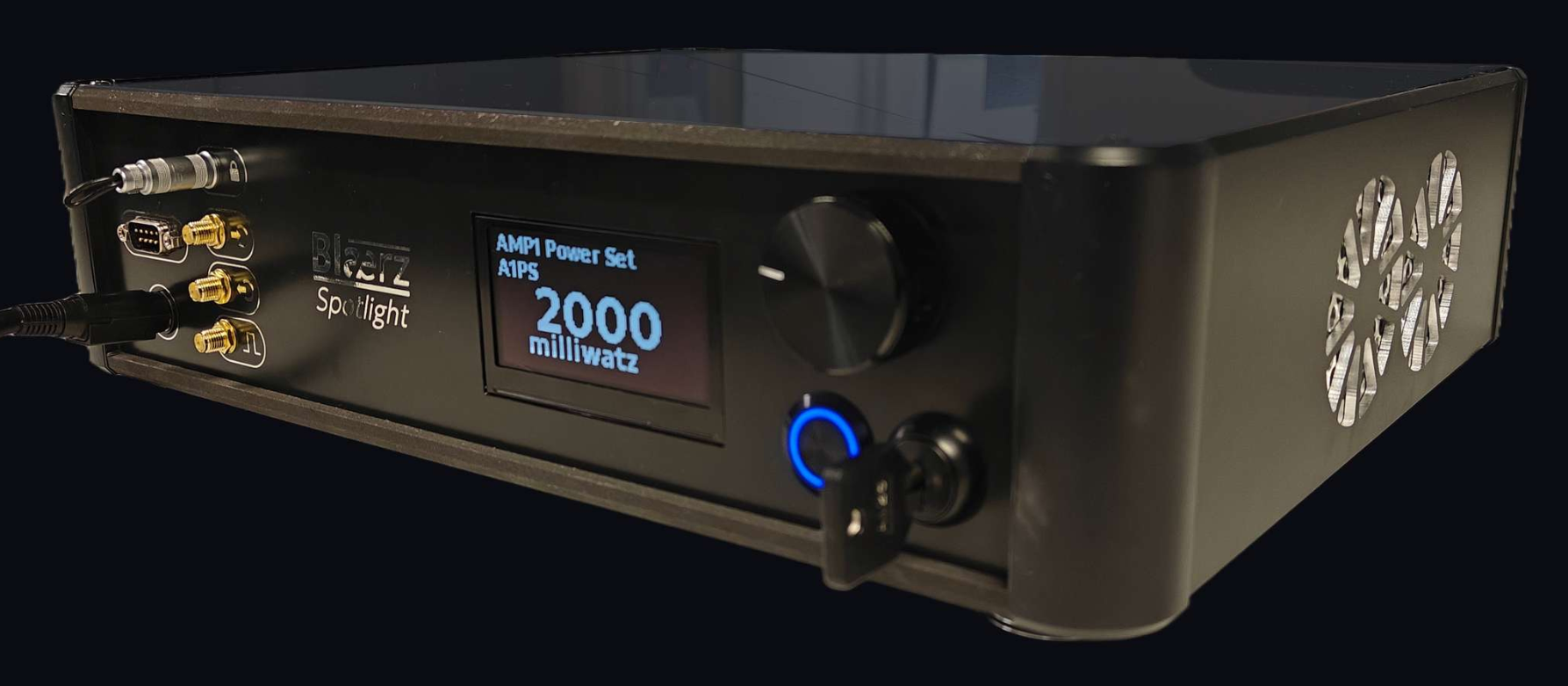

Near-infrared Fluorescence-lifetime illuminator

Overview

• Wavelength 775 nm (FWHM < 5 nm)
• Power 2W
• Repetition rate 10 – 80 MHz
• Pulse width 300 ps
• Pulse fall time 150 ps
• Irradiance for 10 cm x 10 cm FOV up to 20 mW/cm²

Technical specifications

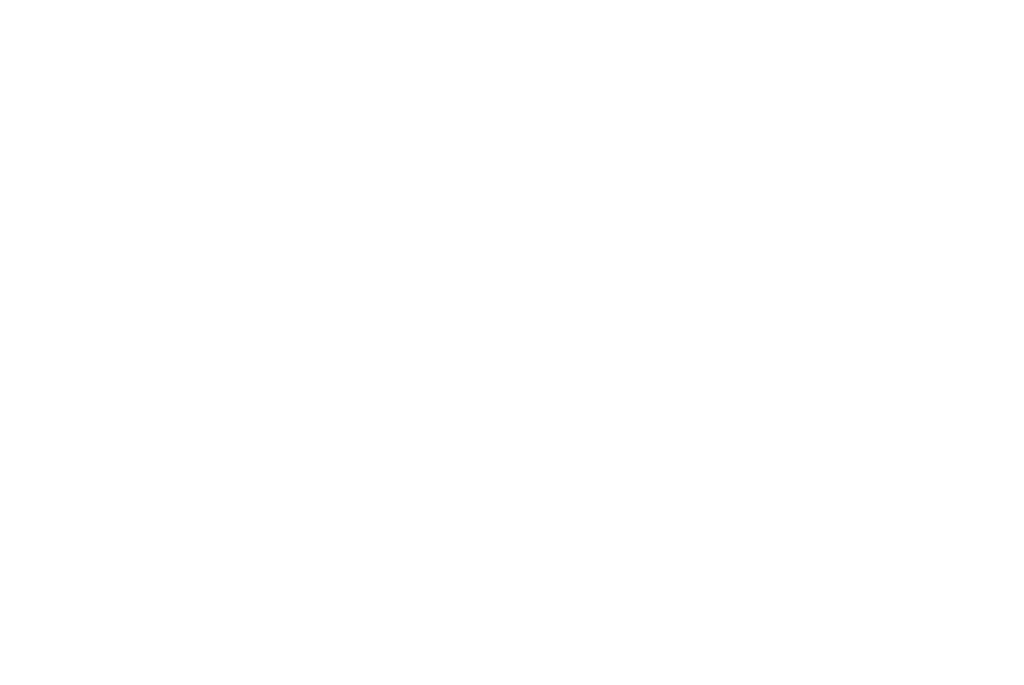

Picosecond pulse shape

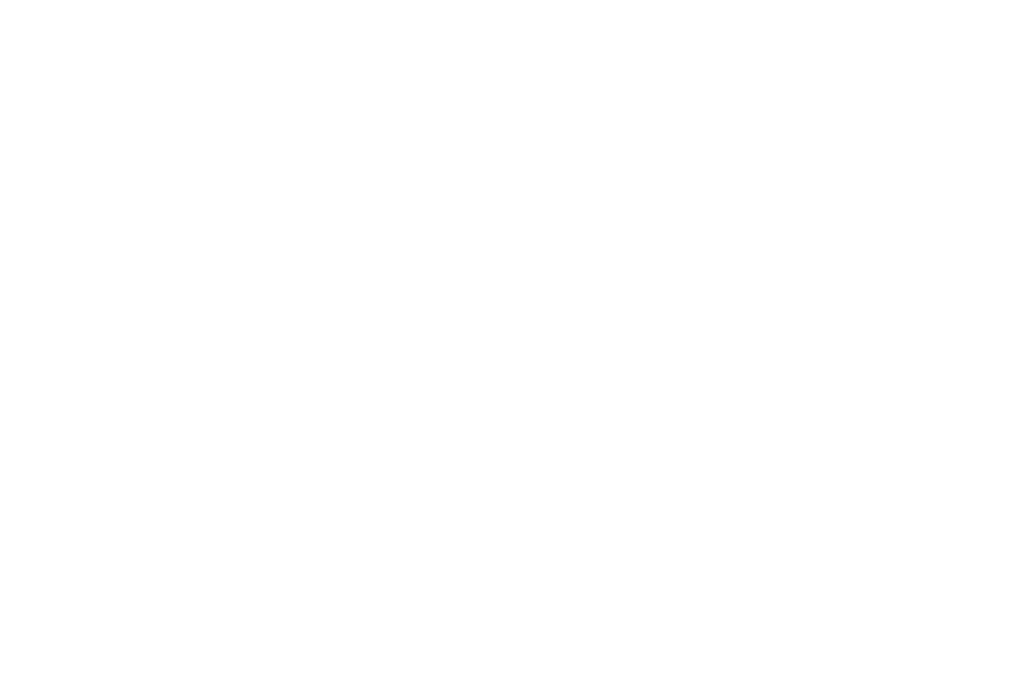

Spectrally pure

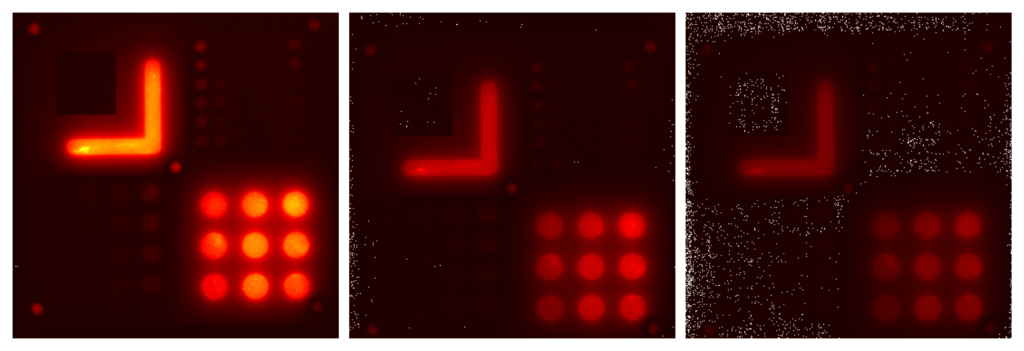

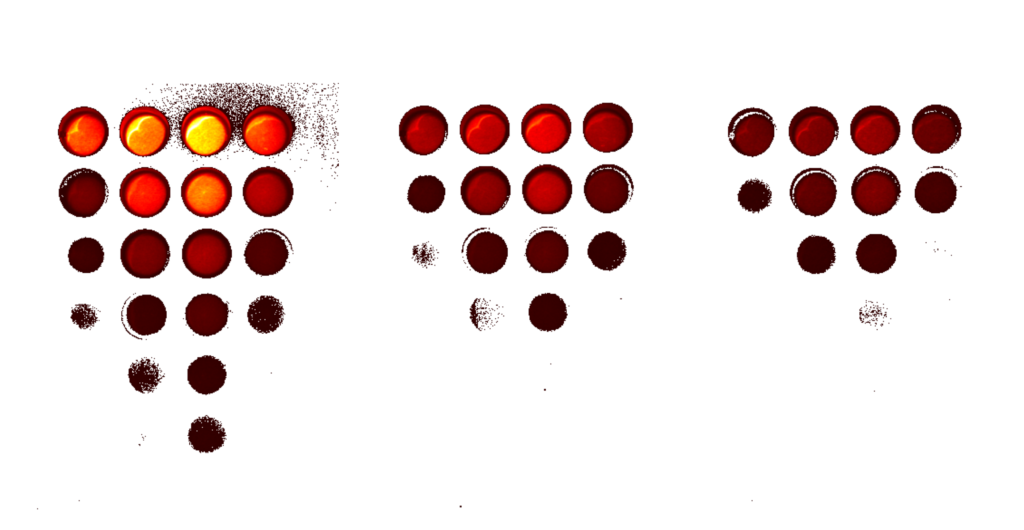

Seeing what others can’t

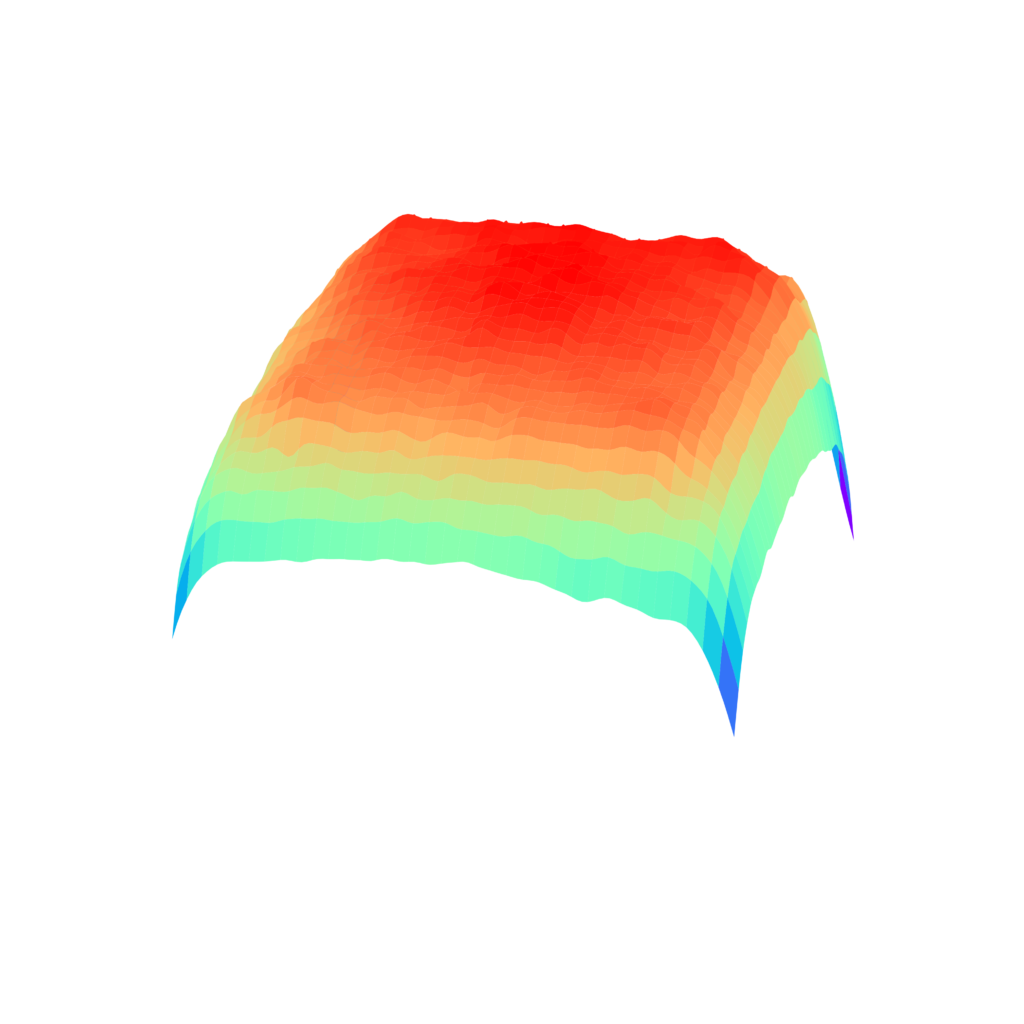

Enabling high-power illumination over large areas

Interface and connectivity

• Can be controlled over USB, Ethernet or UART
• Synchronization to other laser sources with picosecond accurate delay control
